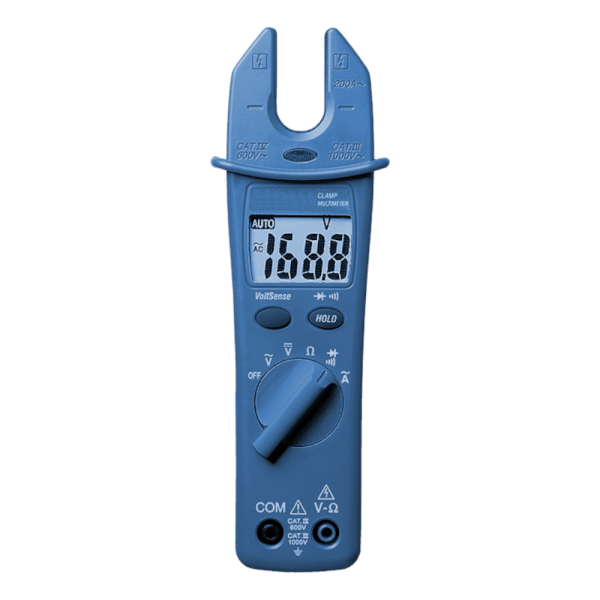

main product photo

Skip to the beginning of the images gallery

DCMA3

DCMA5

US$99,998.00

AC Voltage

AC Current

DC Voltage

DC current

Non-Contact Voltage

Resistance

Capacitance

Frequency

Diode

Continuity

Data Hold

Current
Current
AC	200A
DC	No

Voltage
Voltage
AC	1000V
DC	1000V

SKU

DCMA5

DCMA5 is available to buy in increments of 1

Information
Description	Value
Safety Rating	CAT IV 600V, CAT III 1000V
Display counts	2000 Counts
Auto Ranging	No
Jaw Size	Ø16mm
True RMS	No
AC Voltage	1000V
AC Current	200A
DC Voltage	1000V
DC current	No
Non-Contact Voltage	Yes
Resistance	Yes
Capacitance	No
Frequency	No
Duty Cycle	No
Diode	Yes
Continuity	Yes
Display Backlight	No
Work Light	No
Data Hold	Yes
MAX/MIN/AVG	NO
Relative Measurement	No
Bar Graph	No
Insulation Test	No
Low Pass Filter	No
Low Impedance	No
Dual Display	No
Peak Measurement	No
coil_ø	No
Auto Power Off	No
Temperature	No
Type K Temparature	No

ACV	Ranges	200V~1000V
	Resolution	0.1V
	Input impedancy	2MΩ//<100pF
	Overload protection	1000V
	Conversion type	RMS
DCV	Ranges	200V~1000V
	Resolution	0.1V
	Input impedancy	2MΩ//<100pF
	Overload protection	1000V
ACA	Ranges	200A
	Resolution	0.1A
	Conversion type	RMS
OHM	Ranges	20MΩ
	Resolution	0.1Ω
	Overload protection	600V
Continuity Test	Threshold	less than 50Ω
Continuity Test	Indicator	Buzzer
Diode Test	Range	0.4V~0.8V
	Resolution	100mV
	Open circuit voltage	3V max

General
Description	Value
Certificate	CE
Power Supply	2x1.5V AAA / 250h
Accessories	Test leads, ZnC battery (installed), manual.
